Home 2022 Land Rover Range Rover Sport HSE Dynamic 5.0L V8 - Gas Water Pump

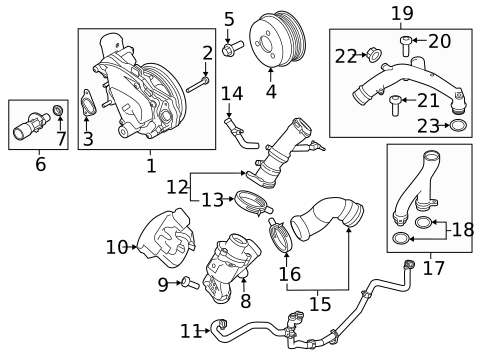

Water Pump for 2022 Land Rover Range Rover Sport

No.

Part # / Description / Price

Price

Water Pump Assembly

LR097165

Land-Rover

$262.88

Water Pump Assembly Mount Bolt

LR011272

Land-Rover

Notes: PARTS: Part included with Water pump assembly.

$5.63

Gasket

LR049370

Land-Rover

Notes: PARTS: Part included with Water pump assembly.

MSRP $42.51

$33.16

MSRP $42.51

$33.16

Pulley

LR011325

Land-Rover

$116.04

Latch Bolt

FS108206

Land-Rover

$9.47

Oil Cooler Tube

LR028136

Land-Rover

Description: Without supercharged. 5.0L, 2016-19. With supercharger, 2016-19. With supercharger, primary. 3.0L gas, 2016-19. With supercharger, 2013-15. 5.0L, 2014-15. 3.0L v6 gas 2014-15. Tube. Without supercharger.

MSRP $36.30

$35.39

MSRP $36.30

$35.39

Oil Cooler Tube Seal

LR030593

Land-Rover

Notes: PARTS: Part included with tube.

Description: O-Ring. 5.0L, 2016-19. With supercharger, 2016-19. 3.0L gas, 2016-19. With supercharger, 2013-15. 5.0L, 2014-15. 3.0L v6 gas 2014-15. Without supercharger.

$29.34

Engine Coolant Thermostat Kit

LR032135

Land-Rover

$132.97

Oil Cooler Screw

LR011270

Land-Rover

Description: Without supercharged. 5.0L, 2016-19. Without supercharger. 5.0L, primary. M6x25mm. Thermostat unit,screw. 3.0L gas. Oil cooler,screw.

$4.77

Thermostat Unit Shield

LR051007

Land-Rover

Description: With supercharged. 5.0L, 2016-19. With supercharger, 2016-19. 3.0L gas, 2016-19. 5.0L, primary. With supercharger, 2013-15. 5.0L, 2014-15. 3.0L v6 gas, 2014-15. Without supercharger.

$145.13

Water Hose

LR034628

Land-Rover

Description: With supercharger, 2016-19. 3.0L gas, 2016-19. With supercharger, 2013-15. 5.0L, 2014-15. 3.0L v6 gas, 2014-15. Without supercharger.

$43.09

Inlet Tube

LR049990

Land-Rover

Description: 5.0L, 2016-19. With supercharger, 2016-19. 3.0L, to engine. 5.0L, primary, thermostat to engine. With supercharger, 2013-15. 5.0L, 2014-15. Engine Cooling. Thermostat to Pipe. Inlet tube. 3.0L gas.

$71.13

Outlet Tube Clamp

LR034109

Land-Rover

Notes: PARTS: Part included with inlet tube.

Description: 5.0L, 2016-19. With supercharger, 2016-19. 3.0L gas, 2016-19. With supercharger, 2013-15. 5.0L, 2014-15. 3.0L v6 gas 2014-15. Without supercharger.

$27.52

Hose

LR045239

Land-Rover

Description: 5.0L, 2016-19. With supercharger, 2016-19. Engine Cooling. Outlet. 3.0L gas, 2016-19. 5.0L, primary, to throttle body. With supercharger, 2013-15. 5.0L, 2014-15. 3.0L v6 gas, 2014-15.

$65.31

Outlet Tube

LR033994

Land-Rover

MSRP $29.27

$24.74

MSRP $29.27

$24.74

Water Pipe

LR092992

Land-Rover

Description: Engine Cooling. With supercharger, 2016-19. 3.0L v6. 5.0L, primary, to block. 3.0L gas. Water pipe.

$70.19

Water Pipe O-Ring

LR010800

Land-Rover

Notes: PARTS: Part included with water pipe.

$24.53

Water Manifold

LR090630

Land-Rover

Description: 5.0L, 2016-19. With supercharger, 2016-19. 3.0L v6. 5.0L, primary. 3.0L gas, 2016-19. Engine Cooling.

$70.03

Water Manifold Plug

LR011038

Land-Rover

Notes: PARTS: Part included with water manifold.

Description: 3.0L, primary. 5.0L, 2016-19. With supercharger, 2016-19. 5.0L, primary. 3.0L gas, 2016-19. With supercharger, 2013-15. 5.0L, 2014-15. 3.0L v6 gas, 2014-15. Without supercharger.

$21.18

Water Manifold O-Ring

LR100353

Land-Rover

Notes: PARTS: Part included with water manifold.

Description: 5.0L, 2016-19. With supercharger, 2016-19. 3.0L v6. 5.0L, primary. 3.0L gas, 2016-19. Engine Cooling. O-Ring. Outlet Flange. Location-Upper.

$24.30

No.

Part # / Description / Price

Price

N/A

Auxiliary Radiator

LR181521

Land-Rover

Description: 2.0L phev, auxiliary. 3.0L i6 gas, auxiliary. 2.0L turbo, auxiliary radiator. 3.0L turbo, auxiliary. Discovery. Range rover.

$439.51

Radiator

LR162110

Land-Rover

Description: Range rover sport. Discovery. Primary. Defender 110. Defender 90. Without supercharger.

$688.03

Upper Hose

LR113132

Land-Rover

Description: Range rover sport. 3.0L gas, main.

$146.51

Lower Hose

LR166363

Land-Rover

Notes: Includes: Coolant Temp Sensor.

Description: Range rover. To vin na472638. 3.0L gas, main. From vin na472639.

$161.09

Expansion Tank

LR181676

Land-Rover

Description: 5.0L, main. Range rover sport. With supercharger, main. 3.0L gas, main. 3.0L diesel, main. Without supercharger.

$181.84

Cap

LR176861

Land-Rover

Description: 3.0L turbo, main. 3.0L, primary. Expansion tank cap. Defender 110. 3.0L i6 gas, main. Range rover. Discovery. Defender 90.

MSRP $22.52

$20.94

MSRP $22.52

$20.94

Reservoir Hose

LR035630

Land-Rover

Description: Range rover sport. 5.0L, main. With supercharger, main. Reservoir hose. 3.0L gas main.

$43.09

Engine Coolant Level Sensor

PCJ500030

Land-Rover

MSRP $30.54

$27.79

MSRP $30.54

$27.79

Engine Coolant Thermostat Kit

LR032135

Land-Rover

$132.97

Auxiliary Pump

LR067228

Land-Rover

Description: Range rover. 5.0L, auxiliary, from vin ea387127. With supercharger, auxiliary. Discovery. 3.0L gas, auxiliary. Charge Air Cooling. Defender 110. Defender 90. Auxiliary pump.

$315.83
